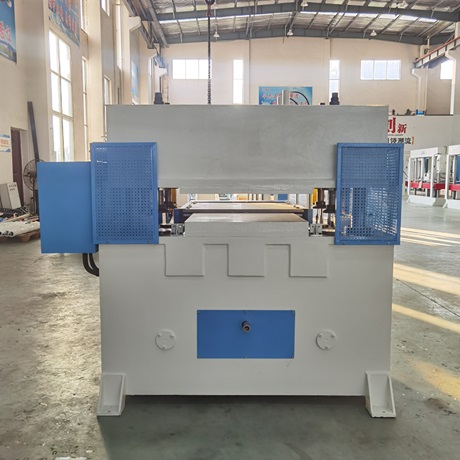

XYJ－5A/40 精密四柱液壓模切機 Precision four-column hydraulic die-cutting machine
本機適用于成型刀模對幅面不大于600㎜的非金屬材料（如商標、無紡布、工業膠帶、電子屏蔽材料、保護膜、復合材料等行業產品）進行全裁斷或半裁斷的手動作業。
It is suitable for manual full or semi-cutting operations of non-metallic materials (such as trademarks, non-woven fabrics, industrial tapes, electronic shielding materials, protective films, composite materials and other industry products) with a width not exceeding 600mm by cutting die mold.
沖裁力(kN) Max. cutting force | 400 |
上下壓板間距離 Rang between the working tables | 100－240 |
模切尺寸 Max. die cutting size | ≤500×500 |
上下工作臺面尺寸 Size of upper and lower worktable | 600x600/610 |
送料電機功率(kW) Feeding motor power | 2.3 |
主電機功率(kW) Main motor power | 2.2 |
整機重量 Total weight | 2550 |
